Stylish lighting solution for acoustic panels with exceptionally uniform light distribution
Matte black finish makes it nearly invisible in black felt acoustic panels when switched off
Easy, tool-free installation with 3M adhesive backing
Areas of application
Designed to fit acoustic panels with slat heights (=mounting depth) of around 10 mm / 13 mm for seamless integration
Suitable for acoustic panels with slat spacing ≥ 12.4 mm
Also ideal for any dark surface - discreet and unobtrusive thanks to the black finish
Product features

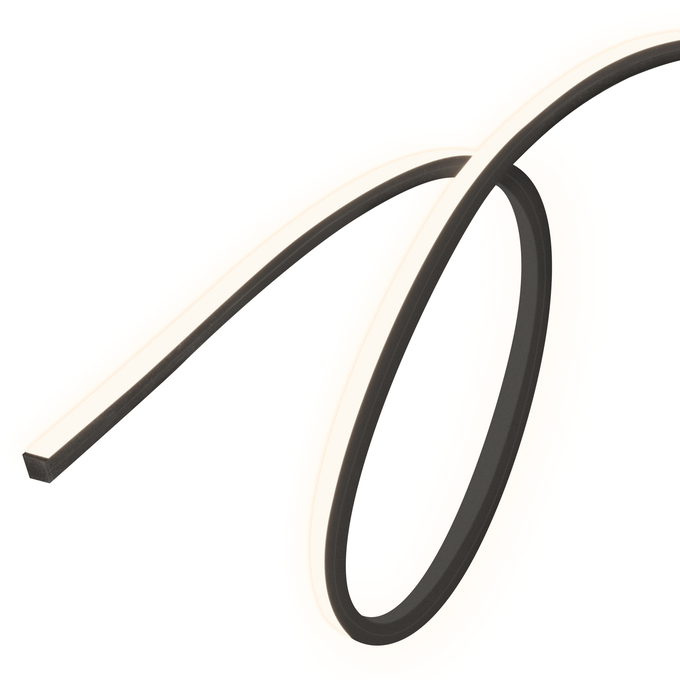

Warm white, cuttable LED strip with black silicone sleeve and matte black light-emitting surface

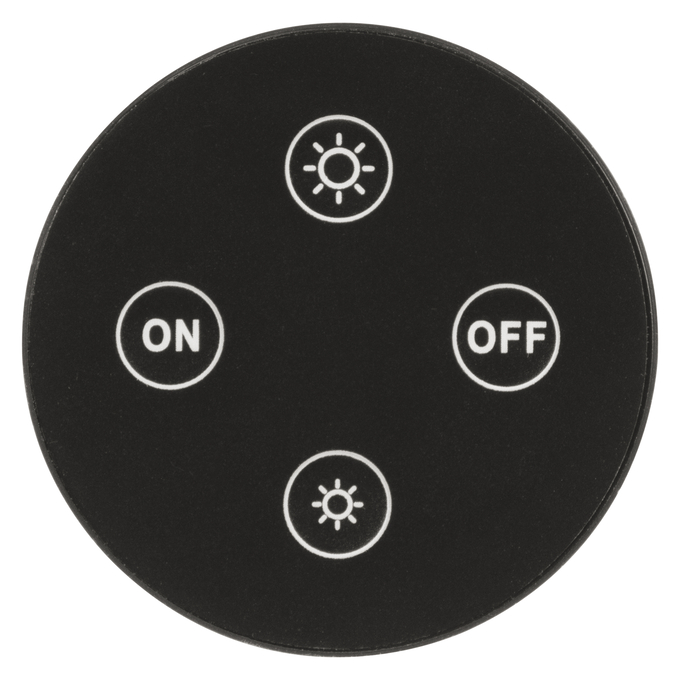

Starter Set: powerful power supply (supports up to 3 LED strips) and RF remote for convenient ON/OFF and dimming included
Equipment / Accessories
Two metal clips for optionally fastening the ends are included. For slat spacing ≥ 14 mm, the outer tabs of the metal clips may be carefully bent outwards using a small screwdriver
Cutting marks can be found on the backside of the LED strip, beneath the adhesive tape
Black silicone end cap for a clean finish after cutting included
Cut-off pieces cannot be reused or reconnected
Batteries required for remote control: 2xAAA (not included)
Safety advice
Do not connect the rope light to the supply while it is wound onto a reel. The string of lights may not be operated within the packaging. Do not open the lightstrip.
Electrical data
Nominal wattage
29.00 W
Nominal voltage
220…240 V
Mains frequency
50…60 Hz
Nominal current
142 mA
Inrush current
6.9 A
Max. number of luminaires per miniature circuit breaker B16
55
Max. number of luminaires per miniature circuit breaker C16
74
Power factor λ
> 0.80
Total harmonic distortion
< 15 %
Protection class
II
Operating mode
Mains voltage
Photometrical data
Luminous flux
260 lm
Total luminous flux of contained light sources
1000 lm
Luminous efficacy
9 lm/W
Color temperature
3000 K
Light color (designation)
Warm White
Color rendering index Ra
> 80
Standard deviation of color matching
≤6 sdcm
Flickering metric (Pst LM)
≦1
Photobiological safety group acc. to EN62778
RG0
Beam angle
120 °
Dimensions & Weight
Length
2600.00 mm
Height
13.00 mm
Width
12.40 mm
Product weight
784.00 g
Materials & Colors
Product color
Matt black
Housing color
Matt black
Body material
Silicone
Mercury content
0.0 mg
Application & Mounting
Ambient temperature range
-20…+40 °C
Temperature range at storage
-20…+80 °C
Type of connection
Plug type G (UK)
Type of protection
IP20
Dimmable
Yes
Mounting type
Surface
Replaceable light source
No
Lifespan
Lifespan L70/B50 at 25 °C
30000 h
1)
Lifespan L80/B10 at 25 °C
30000 h
1)
Number of switching cycles
15000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
Standards
CE; UKCA
Replaceable light source (EPREL)
Not replaceable
Product code
Packaging unit (Pieces/Unit)
Dimensions (length x width x height)
Gross weight
Volume
4099854963421
Folding box 1
62 mm x 262 mm x 275 mm
920.00 g
4.47 dm³
4099854963438
Shipping box 6
390 mm x 285 mm x 305 mm
6000.00 g
33.90 dm³
User instruction / safety instructions FLEX ACOUSTIC BLACK UK
