LED THREE STEP DIM CLASSIC B
SST CLAS B 40 4 W/2700 K E14
GTIN: 4058075269767
Blister / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy three-step dimming by repeatedly pressing the wall switch
- Easy and cost-effective operation, no dimmer required
- Lower energy consumption than incandescent or halogen lamps
- Easy relamping thanks to compact design
- Instant 100 % light, no warm-up time
- Makes rooms multi-purpose with adjustable light atmosphere
Areas of application
- Wherever dimming was originally not planned
- Residential interiors
- Hospitality
- Outdoor use in suitable outdoor luminaires only
Product features
- Dimmable in three steps: 100 %, 55 % and 10 %
- Controllable via standard wall switch
- Good quality of light; color rendering index CRI ≥ 80
- Mercury-free lamps
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
Electrical data
| Nominal wattage | 4 W |
| Construction wattage | 4.00 W |
| Nominal voltage | 220…240 V |
| Claimed equiv. conventional lamp power | 40 W |
| Nominal current | 35 mA |
| Type of current | AC |
| Inrush current | 57 A |
| Operating frequency | 50…60 Hz |
| Mains frequency | 50…60 Hz |
| Max. lamp number on MCB B10 A | 884 |
| Max. lamp number on MCB B16 A | 1415 |
| Power factor λ | > 0.40 |
Photometrical data
| Luminous flux | 470 lm |
| Nominal useful luminous flux 90° | 470 lm |
| Luminous efficacy | 117 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Light color (designation) | Warm White |
| Color temperature | 2700 K |
| Color rendering index Ra | ≥80 |
| Light color | 827 |
| Standard deviation of color matching | ≤6 sdcm |
| Rated LLMF at 6,000 h | 0.80 |
Light technical data
| Beam angle | 300 ° |
| Warm-up time (60 %) | ‹ 0.50 s |
| Starting time | < 0.5 s |
Dimensions & Weight
| Overall length | 97.00 mm |
| Diameter | 35.00 mm |
| Maximum diameter | 35 mm |
| Product weight | 13.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+40 °C |
| Maximum temperature at tc test point | 55 °C |
Lifespan
| Number of switching cycles | 100000 |
| Lumen maintenance at end of service lifetime | 0.70 |
| Rated lamp survival factor at 6,000 h | ≥ 0.90 |
Additional product data
| Base (standard designation) | E14 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Design / version | Clear |
| Product remark | All technical parameters apply to the entire lamp; Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value |
Capabilities
| Dimmable | No |
Certificates & Standards
| Energy efficiency class | E 1) |
| Energy consumption | 4.00 kWh/1000h |
| Type of protection | IP20 |
| Standards | CE |
| Photobiological safety group acc. to EN62778 | RG0 |
1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)
Country-specific categorizations
| Order reference | LEDSCLB403XD 4W |
Energy labelling regulation data acc EU 2019/2015
| Light source cap-type (or other electric interface) | E14 |
| Correlated colour temperature type | SINGLE_VALUE |
| Networked standby power for CLS | 0 W |
| Length | 97.00 mm |
| Height | 35.00 mm |
| Width | 35.00 mm |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Additional info can be provided per individual request |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075269767 | Blister 1 |
42 mm x 140 mm x 120 mm | 36.00 g | 0.71 dm³ |
| 4058075269774 | Shipping box 6 |
262 mm x 153 mm x 136 mm | 325.00 g | 5.45 dm³ |
PRODUCT DATASHEET
LED STAR+ CL B 3xDFIL 40 non-dim 4W/827 E14
LED STAR+ CL B 3xDFIL 40 non-dim 4W/827 E14
Product image: white background, diagonal
597751_RFCLB37 4 W/827 E14 clear
597751_RFCLB37 4 W/827 E14 clear
Product image: white background, upright
597763_RFCLB37 4 W/827 E14 clear
597763_RFCLB37 4 W/827 E14 clear
Product line drawing with letters
603593_RFCLB37 4 W/827 E14 clear
603593_RFCLB37 4 W/827 E14 clear
Product line drawing, front, no dimensions
603608_RFCLB37 4 W/827 E14 clear
603608_RFCLB37 4 W/827 E14 clear

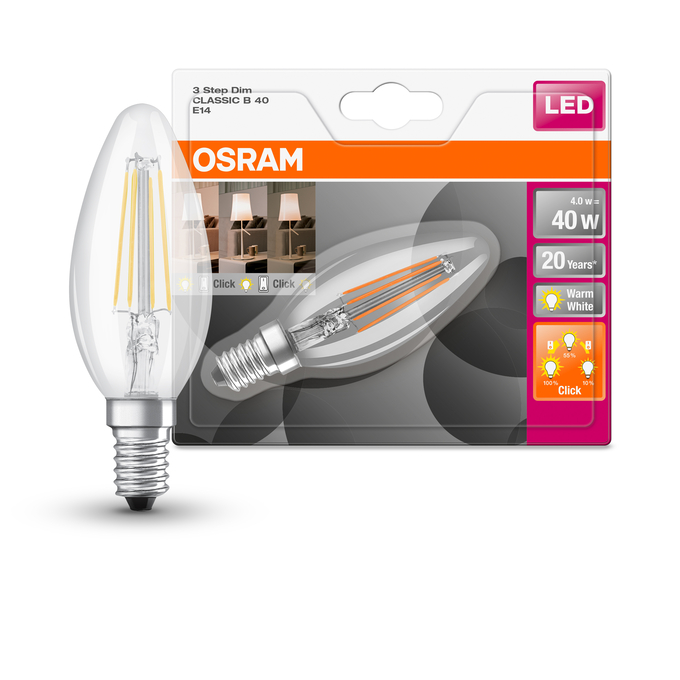

Combo Shot = Product Beauty Shot + Packaging Image
LEDSCLB403XD 4W-827230VFILE146XBLI1
LEDSCLB403XD 4W-827230VFILE146XBLI1
Packaging image, frontal
LED ST PLUS 3StepDIM CLB 40 4W 827 FIL E14_MiCh Front
LED ST PLUS 3StepDIM CLB 40 4W 827 FIL E14_MiCh Front
Packaging image, spacial
LED ST PLUS 3StepDIM CLB 40 4W 827 FIL E14 MiCh Side
LED ST PLUS 3StepDIM CLB 40 4W 827 FIL E14 MiCh Side
Application pictures
3 Step DIM
3 Step DIM
| EAN | STK number | ELDAS number |
|---|---|---|
| 4058075269767 | 4731348 | 941803820 |
