Infrared lamps

Infrared BR40 250W 240V E27 RED

GTIN: 4099854909825 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Infrared technology for targeted radiant heating, warming objects directly rather than wasting energy on the surrounding air
  • Infrared heat penetrates deep into the skin of animals to keep them warm
  • Infrared lamps keep food at safe and appetizing temperatures without drying it out
  • Instant-on infrared technology for rapid and responsive heating
Areas of application
  • Retail displays requiring product warming
  • Food warming stations in catering and hospitality settings
  • Animal care facilities, including veterinary clinics and farms
  • Source of heat for raising young animals
Product features
  • Infrared technology for efficient radiant heating
  • Clear hard glass construction for durability and safety
  • Available with clear or red-coated diffusers
  • Universally dimmable: Compatible with phase-cut dimmers
Safety advice
  • When using the bulb, please match the appropriate lampshade.
  • Don't look directly at the bulb when lighting it.
  • Keep away from all kinds of flammable items and pay attention to ventilation and heat dissipation of equipment.
  • When using the lamp body temperature is high, do not touch with hands to avoid scalding.
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Electrical data
Nominal wattage 250 W
Construction wattage 250.00 W
Nominal voltage 240 V
Nominal current 1.04 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Power factor λ 0.50
Photometrical data
Color temperature 1200 K
Light color 12
Light technical data
Beam angle 50 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s
Dimensions & Weight
Overall length 165.00 mm
Diameter 125.00 mm
Maximum diameter 125 mm
Product weight 100.00 g
Temperatures & operating conditions
Ambient temperature range -20…+60 °C
Maximum temperature at tc test point 250 °C
Additional product data
Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Product remark All technical parameters apply to the entire lamp; Infra-red lamp
Capabilities
Dimmable Yes
Certificates & Standards
Type of protection IP20
Standards CE; EAC; UKCA
Photobiological safety group acc. to EN62778 RG2
Country-specific categorizations
Order reference IR BR40 RED 250
LOGISTICAL DATA
Temperature range at storage -20…+80 °C
Energy labelling regulation data acc EU 2019/2015
Lighting technology used OTHER
Non-directional or directional NDLS
Light source cap-type (or other electric interface) E27
Length 165.00 mm
Height 125.00 mm
Width 125.00 mm
Chromaticity coordinate x 0.680
Chromaticity coordinate y 0.320
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854909825 Folding box
1
141 mm x 141 mm x 177 mm 171.00 g 3.52 dm³
4099854909832 Shipping box
6
445 mm x 296 mm x 187 mm 1400.00 g 24.63 dm³
On-Pack-Info
ELR - exempt lamps
Declarations of conformity
Infrared BR40 Clear
Product image: white background, diagonal
Infrared lamps

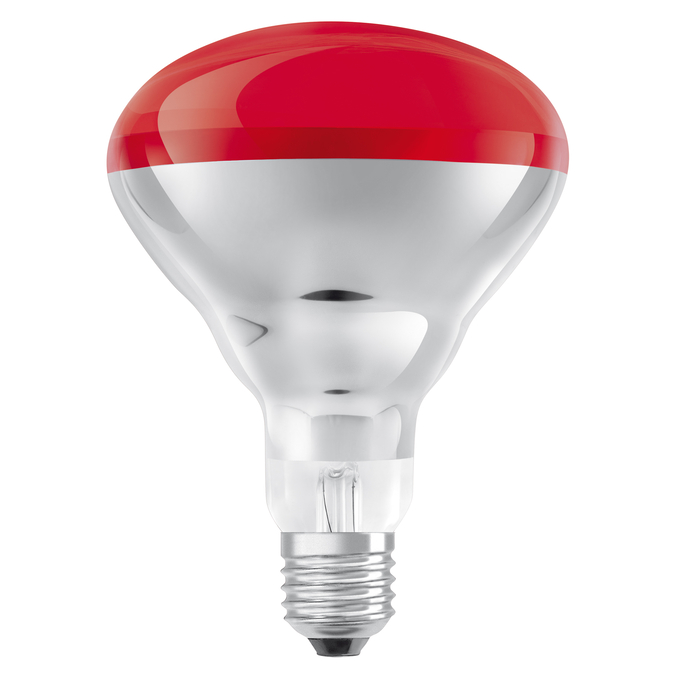

Product image: white background, upright
Infrared lamps

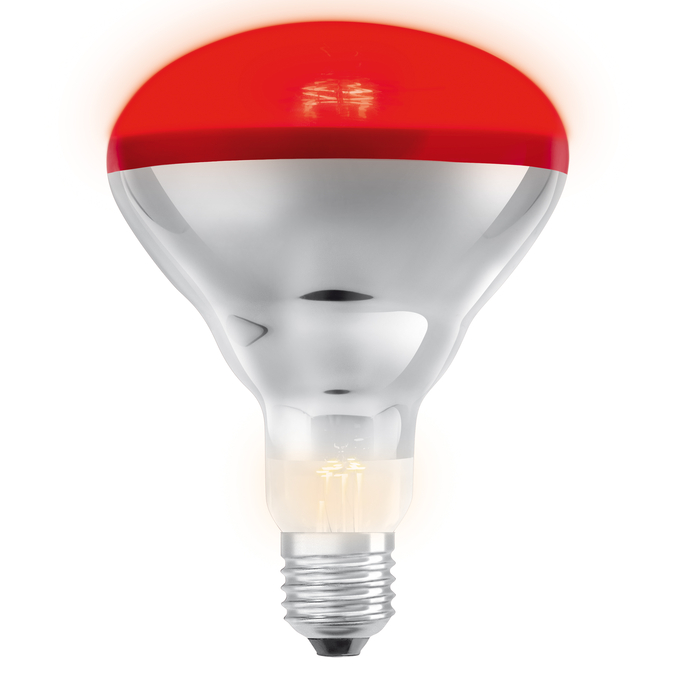

Product image: white background, upright, switched on
Infrared lamps
Product line drawing with letters
Infrared lamps
Product line drawing with numbers
Infrared lamps
Product line drawing - technical
Infrared lamps
Combo Shot = Product Beauty Shot + Packaging Image
FC1 LED INFRARED BR40 250W RED E27
Packaging image, frontal
FC1 LED INFRARED BR40 250W RED E27
Packaging image, spacial
FC1 LED INFRARED BR40 250W RED E27
Spectral power distribution
Spectral graph IR BR40 RED 250W
EAN UK Org
4099854909825 439506670
