Building Information Modeling (BIM)

What is BIM?

Building Information Modeling (BIM) is not only the creation of 3D building models — it is a collaborative digital process that connects people, workflows, and data across the entire building lifecycle.

From early design to long-term maintenance, BIM enables better coordination, faster decisions, and more efficient project delivery. Stakeholders can evaluate and select products directly within the model, understanding their impact before construction begins.

BIM empowers project teams to work more efficiently and transparently.
Using rich, data-driven 3D models, architects, engineers, and construction professionals can:

✔ Collaborate more effectively
✔ Simulate building performance
✔ Detect issues before they occur
✔ Reduce project delays and errors
✔ Lower overall project costs
✔ Improve sustainability outcomes

The result is a smoother, smarter, more reliable construction process.

BIM enhances every step of the design phase:

Clearer visualization for designers and clients
Early clash detection between architecture, structure, and MEP systems
Optimized integration of lighting, HVAC, and other building components
More accurate and coordinated design documentation
This leads to higher quality designs — with fewer surprises during construction.

Modern construction runs on data.
A Common Data Environment (CDE) serves as the digital backbone of a BIM project, providing:

One centralized platform for all project information
Up‑to‑date models and documents accessible to the whole team
Version control and full traceability
Reduced communication gaps and project errors
Transparent and structured collaboration
A well‑managed CDE ensures that every project stakeholder works from a single source of truth.

A building’s lifecycle spans design, construction, operation, renovation, and demolition.
While construction represents only 20–30% of total costs, operation and maintenance consume 70–80%.

BIM adds the greatest value in this longest and costliest phase, providing the data needed for:

Efficient maintenance planning
Energy and system performance monitoring
Lifecycle cost optimization
Asset management and documentation

BIM supports smarter building operations from day one.

ISO 19650 is the international standard for managing information across a building’s lifecycle using BIM. It ensures:

Clear roles and responsibilities
Consistent data structures
High information quality
Efficient collaboration between all stakeholders

ISO 19650 forms the foundation of reliable digital construction practices worldwide.

STEP (.step / .stp) – Standard 3D data exchange format widely used in manufacturing
RFA (.rfa) – Autodesk Revit family format with geometry and parametric BIM data
ULD (.uld) – DIALux format containing full luminaire definitions for lighting design
ROLF (.rolf) – RELUX format including photometric, geometric, and commercial lighting data

IFC (.ifc) – The open, vendor‑neutral building model format used to exchange data between different BIM platforms

LEDVANCE enhances your digital planning with BIM content

LEDVANCE supports your digital planning process with BIM content.

But why is it important for lighting design?

Building Information Modeling (BIM) enables lighting designers to work within a shared, intelligent 3D model that contains all project data, including materials and technical specifications. This centralization ensures better coordination with architects and engineers, reduces errors, and allows the precise integration of lighting systems. Using BIM improves accuracy and efficiency throughout the building’s lifecycle, from design to operation.

Need more information:

Save Time and Improve Accuracy with LEDVANCE BIM Content

Always work with the latest BIM files reflecting real LEDVANCE products, dimensions, and technical specifications updated continuously.

Save Time in Design Workflow
Quickly integrate lighting objects directly into your digital building models. No manual adjustments are needed.

Complete Product Information
The object includes photometric data and product codes to support your planning process.

Easy Access Anytime
Download LEDVANCE BIM content for free directly on the LEDVANCE website, BIM object library or Cadenas.

FAQ

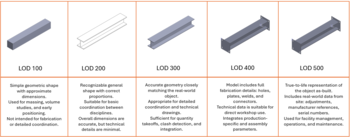

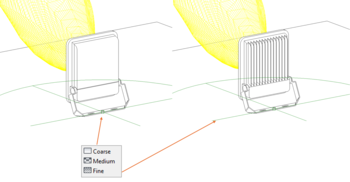

LOD, or Level of Detail, refers to the amount of detail and information included in a BIM element at various project stages. It defines both the graphic precision and the associated data needed depending on how the model is used. This standardized scale typically ranges from LOD 100 (conceptual) to LOD 500 (as built), guiding teams in modeling and project coordination.

A digital twin is a dynamic digital representation of a real-world object, system, or building. It uses real-time data and 3D models to simulate, monitor and analyse the performance of the physical asset. In the context of buildings, digital twins enable construction operations to be optimized and errors to be predicted, maintenance requirements to be forecast and better decisions to be made throughout the asset's lifecycle. By linking the virtual and physical worlds, digital twins enable buildings to be managed more intelligently and efficiently.

How to find the files

To download LEDVANCE professional products from EU-West directly on LEDVANCE website, bimobject or CADENAS.

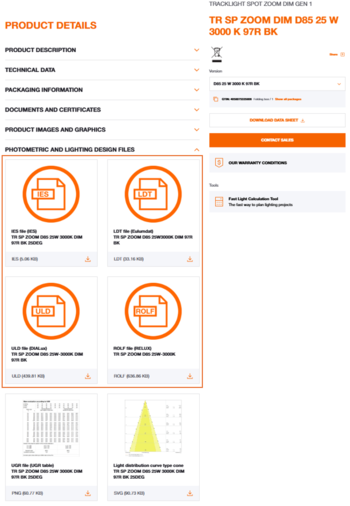

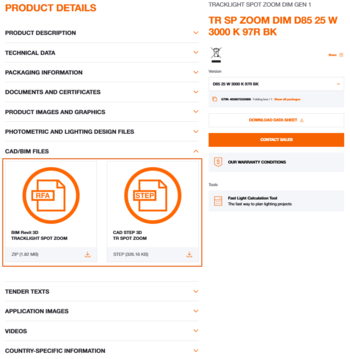

1. download on ledvance

For the LEDVANCE website, choose your product on https://www.ledvance.com/en-int/professional-lighting/products

Photometric file available on the website. File type:

IES Standard format for photometric data only.
LDT Standard format for photometric data only.
ULD (DIALux) photometric and geometric data.
ROLF (RELUX) photometric and geometric data.

choose your product here

CAD file available on the website

BIM file:
RFA (Revit) contains all the variants of the same product, photometric and geometric data.

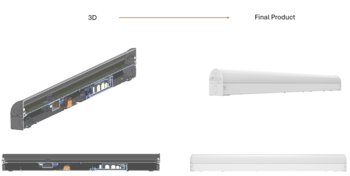

3D file:
STEP file, a standardized 3D CAD exchange format. Contains precise geometry and structure of components.

2. download on bimobject

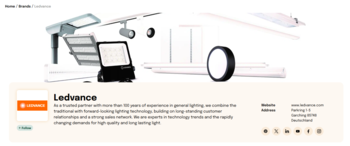

Bimobject is more than just a platform, it’s a complete digital catalogue.
It is a Swedish company that offers a leading digital platform for the construction and architecture industry.

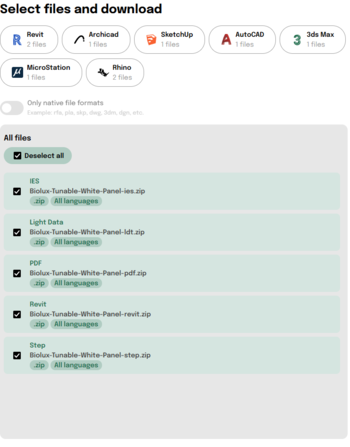

On the bimobject platform, you can download ready-to-use BIM files of LEDVANCE products. These include:

Revit families (.RFA) for BIM modeling
Photometric files (IES /.LDT) for lighting simulation on simulation software
Technical documentation (PDF)
Geometry and structure of components (STEP)

This makes it easy for architects and engineers to integrate LEDVANCE professional products from EU-West directly into their digital planning workflows. Optimize your workflows and productivity and add the different products to your Bim model for better sustainability in your project and better coordination in your team in a different project.

The product information is available in 23 languages.

Visit bimobject

3. Our products on CADENAS:

CADENAS is a powerful platform for accessing intelligent 3D BIM and CAD content.

Headquartered in Augsburg, Germany, CADENAS GmbH is a leading provider of software solutions for strategic parts management and electronic product catalogs, which often include detailed CAD and BIM models used in engineering and construction.

Through the CADENAS platform, users can search, configure, and download 3D BIM objects of LEDVANCE products with accurate technical data. Filters by product category, file format, and specifications help streamline the design process and ensure full compatibility with preferred BIM tools.

Download 3D CAD models for free | 3Dfindit

BIM for your projects with LEDVANCE

Complete BIM models of LEDVANCE luminaires, optimized for BIM platforms.
