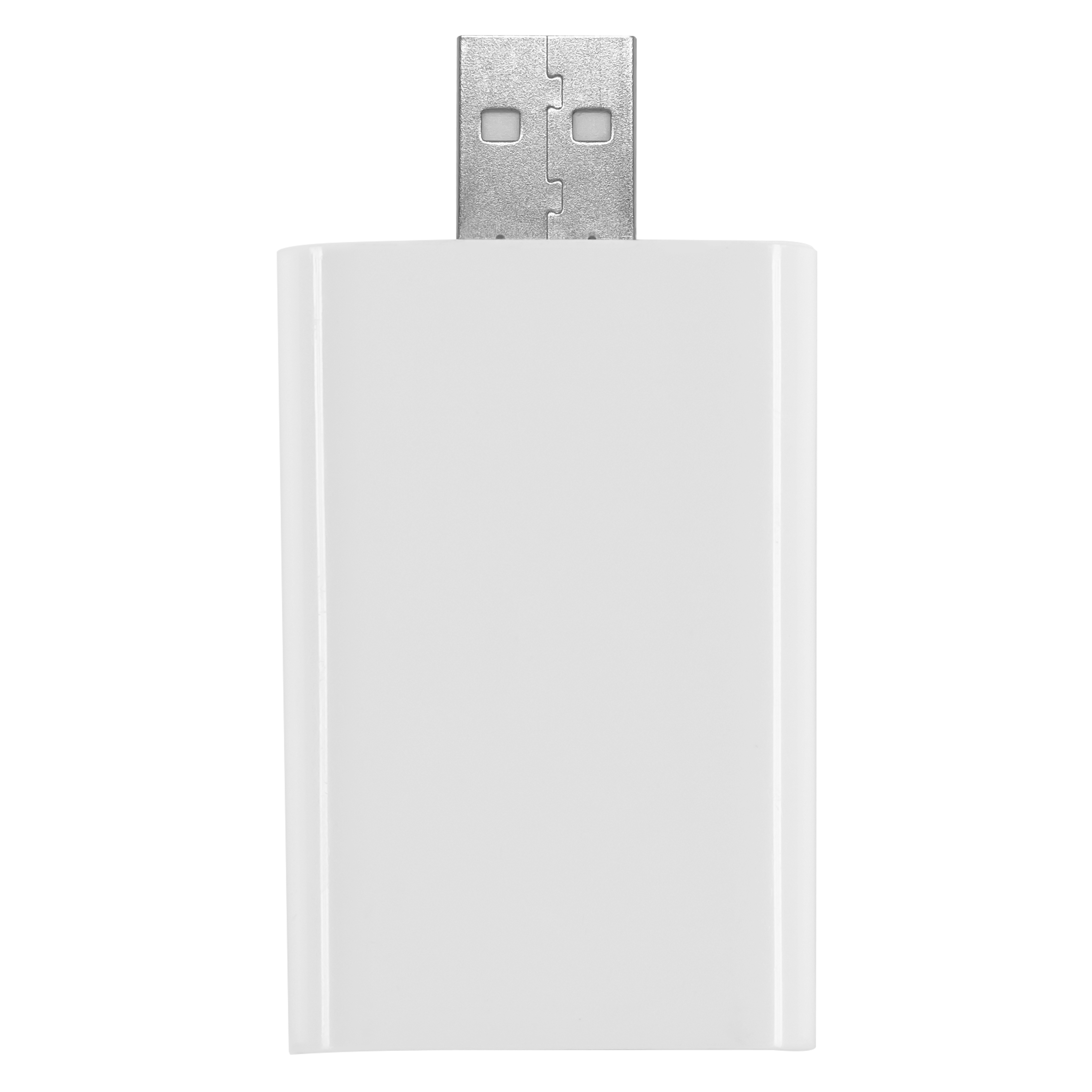

LINK TIME CONTROLLER 1A BLE white, backside (thumbnail)

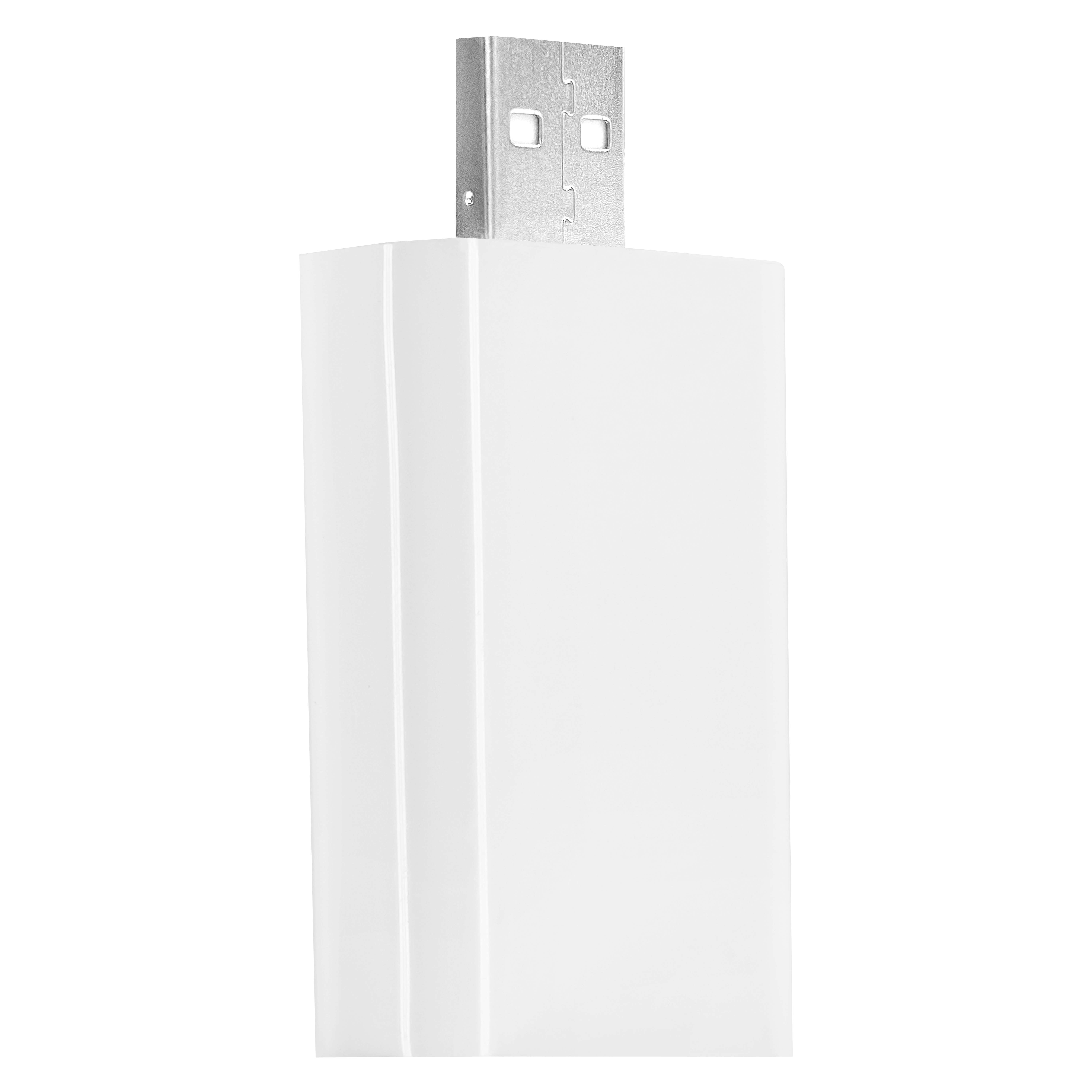

LINK TIME CONTROLLER 1A BLE white, left side (thumbnail)
LINK TIME CONTROLLER 1A BLE white, diagonal, LEDVANCE logo
LINK TIME CONTROLLER 1A BLE white, spacial
LINK TIME CONTROLLER 1A BLE white, upright
LINK TIME CONTROLLER 1A BLE white, horizontal
LINK TIME CONTROLLER 1A BLE white, backside
LINK TIME CONTROLLER 1A BLE white, left side
LEDVANCE LINK™ TIME CLOCK MODULE

LINK TIME CONTROLLER 1A BLE

NAED: 63828
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product features
  • Commission and configure with LEDVANCE LINK™ app
  • Control using either the LEDVANCE LINK™ app or the wireless controller
  • Grouping and Zoning: Wirelessly group luminaires to act in sync with each other
  • Scene Control: Preset various scenes for individual or group of luminaires using the app and/or wireless/wired controllers
  • QR Code for Admin/Guest control: Using the LEDVANCE LINK™ app, Admin and Guest QR codes for each zone can be generated. Allows copying the settings to another phone/tablet by scanning this QR code
  • Allows setting time-based schedules and high-end and low-end trim through the LEDVANCE LINK™ app
Installation Guide
INSTALLATION GUIDE BLUETOOTH® MESH TIME CLOCK MODULE LEDVANCE LINKTM
PDF (352.05 KB)
Installation Guide
USER GUIDE LEDVANCE LINK FW Manager
PDF (756.27 KB)
Other documents / promotion
DATASHEET LEDVANCE LINK™ BLUETOOTH MESH TIME CLOCK MODULE
PDF (408.46 KB)
Other documents / promotion
LEDVANCE Product Launch Flyer February 2024
PDF (700.52 KB)
Other documents / promotion
CHOOSING THE RIGHT LEDVANCE CONTROL SOLUTION
PDF (1.5 MB)
Other documents / promotion
LEDVANCE LINK Sales Flyer
PDF (1.55 MB)
Other documents / promotion
LEDVANCE US and Canada Warranty Terms and Conditions
PDF (147.57 KB)
Electrical data
Nominal wattage 360.00 W
Nominal voltage 120…277 V
Supply Frequency 50…60 Hz
Dimensions & Weight
Length 2.9 in
Width 1.15 in
Height 0.61 in
Product weight 0.05 lb
Additional product data
Ordering Abbreviation TIMECONTROLLER1ABLE
Abbrev. With Packaging Info. TIMECONTROLLER1ABLE 100/CS 1/SKU
SKU UPC 0046135638282
General Description USB-A Powered (5V) time controller, helps restore settings after power failures, includes necessary batteries
Capabilities
Dimming Yes
Certificates & Standards
Certification Listing RoHS; FCC; cULus
Protection class II
Type of protection IP66
Logistical data
SKU Qty 1
Case Qty 100
Case Length (in) 12.205
Case Width (in) 9.449
Case Depth (in) 12.008
Case Cube (ft) 0.801
Case Weight (lbs) 5.589
SKU UPC 0046135638282
Pallet Qty 4,800
SKU's/Case 100
SKU's/Pallet 4800
Cases/Pallet 48

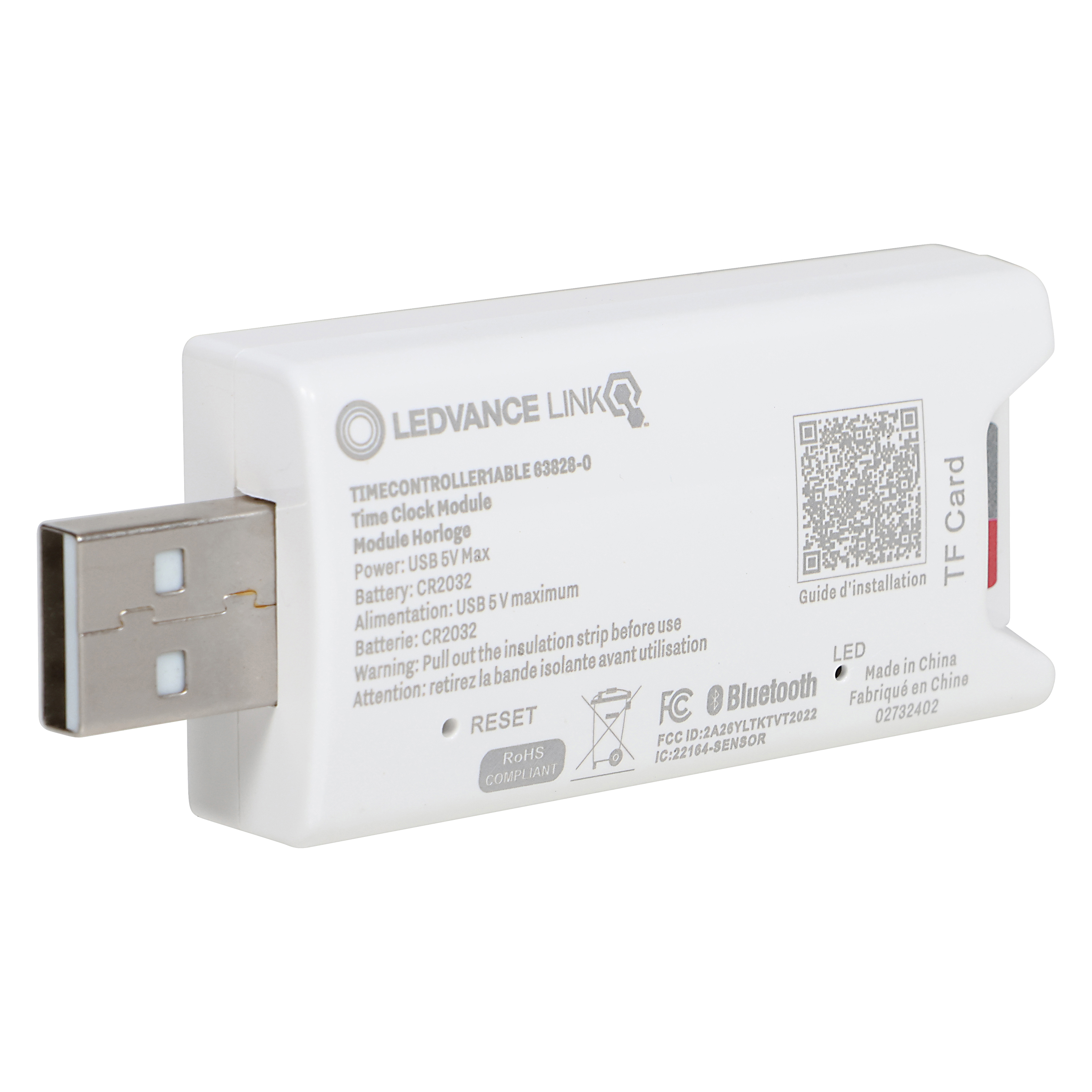

Product image: white background, diagonal with LEDVANCE logo
LINK Bluetooth Low Energy Mesh Time Clock Module
JPG (1.83 MB)

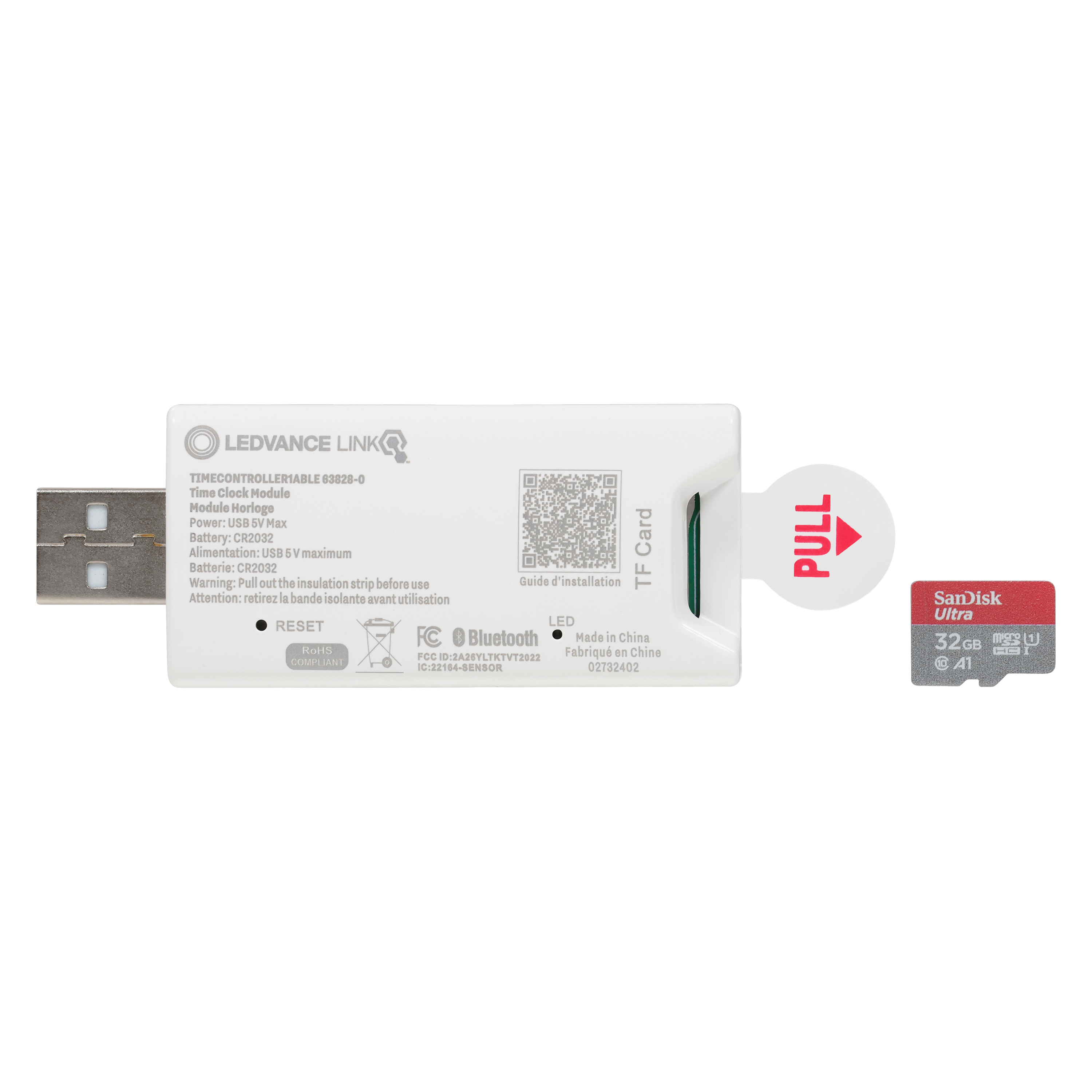

Product image: white background, horizontal
