SLIM MICRODISK BLAZE GUARD™ FLAME RESISTANT
LEDMD BLAZEGUARD 8" 5CCT 1600LM 120V
NAED: 63428
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Residential
- Commercial applications
- Fire resistent ceilings
- Multi-family housing
- Shipbuilding applications
Product features
- Canless recessed flush mount downlight with remote driver design for easy installation
- Tested to UL263 for flame resistance of 1100 °C for up to 2 hours
- Selectable CCTs: 2700/3000/3500/4000/5000K
- Up to 86 LPW
- Energy savings up to 92 %
- 1/2" height allows installation directly under joists
- Beam Angle of 110° FWHM
- 90 CRI, R9>50
Equipment / Accessories
- Luminaire with interconnected cable to galvanized steel remote driver wiring enclosure via FT6 cable
- Quick Connectors
Safety advice
- Suitable for indoor, dry, and wet locations.
- Not intended for use with emergency light fixtures or exit lights.
- Suitable for use in closets, compliant with NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5).
- IC Rated.
- Air Tight certified in accordance with ASTM E283-2004.
- Max Ceiling Thickness 1.18" (30 mm).
Installation Guide
FLAME RESISTANT SELECTABLE SLIM MICRODISK MANUAL
FLAME RESISTANT SELECTABLE SLIM MICRODISK MANUAL
Product Family Spec Sheet
FLAME RESISTANT SELECTABLE SLIM MICRODISK
FLAME RESISTANT SELECTABLE SLIM MICRODISK
Other documents / promotion
LEDVANCE Product Launch Flyer May 2023
LEDVANCE Product Launch Flyer May 2023
Other documents / promotion
LEDVANCE PERFORMANCE CLASS BLAZE GUARD
LEDVANCE PERFORMANCE CLASS BLAZE GUARD
Other documents / promotion
LEDVANCE US and Canada Warranty Terms and Conditions
LEDVANCE US and Canada Warranty Terms and Conditions
Other documents / promotion
TAA Compliant Products Brochure
TAA Compliant Products Brochure
Electrical data
| Nominal Wattage | 19.00 W |
| Nominal voltage | 120.00 V |
| Power factor | ≥0.90 |
| Total Harmonic Distortion | < 20 % |
Photometrical data
| Lumens | 1600 lm |
| Efficacy | 84 lm/W |
| Color Temperature/CCT | 2700/3000/3500/4000/5000 K |
| Color Rendering Index (CRI) | 90 |
| Luminaire Type | Downlight |
Dimensions & Weight
| Diameter | 8.86 in |
| Height | 0.9 in |
| Product weight | 1.06 lb |
Materials & Colors
| Luminaire Finish | White |
| Housing color | White |
| Housing | Aluminum|Plastic |
| Mercury content | 0.0 mg |
Application & Mounting
| Dimming | Yes |
| Type of Dimming | PHASE CUT |
| Mounting | Recessed |
| Replaceable light source | No |
Lifespan
| Average Rated Life (hr) | 50000 |
Certificates & Standards
| Certification Listing | RoHS; FCC; cULus |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Ordering Abbreviation | LEDMD8R3B1600ST9SC3WH |
| Abbrev. With Packaging Info. | LEDMD8R3B1600ST9SC3WH 6/CS 1/SKU |
| SKU UPC | 0046135634284 |
| Family Brand Name | Slim Microdisk |
| General Description | 8" round slim microdisk, 5 CCT selectable, white finish, 1600lm, 120V, Triac dimming, › 90 CRI, UL263 rated for fire resistance |
| Warranty | 5 years |
Logistical data
| SKU Qty | 1 |
| Case Qty | 6 |
| Case Length (in) | 19.409 |
| Case Width (in) | 8.583 |
| Case Depth (in) | 9.685 |
| Case Cube (ft) | 0.934 |
| Case Weight (lbs) | 8.387 |
| SKU UPC | 0046135634284 |
| Pallet Qty | 240 |
| SKU's/Case | 6 |
| SKU's/Pallet | 240 |
| Cases/Pallet | 40 |
| Product image | Product name | UPC |
|---|---|---|
|
SLIM MD FRAME DRYWALL | OS62959 |
|
SLIM MD FRAME T-GRID | OS63743 |

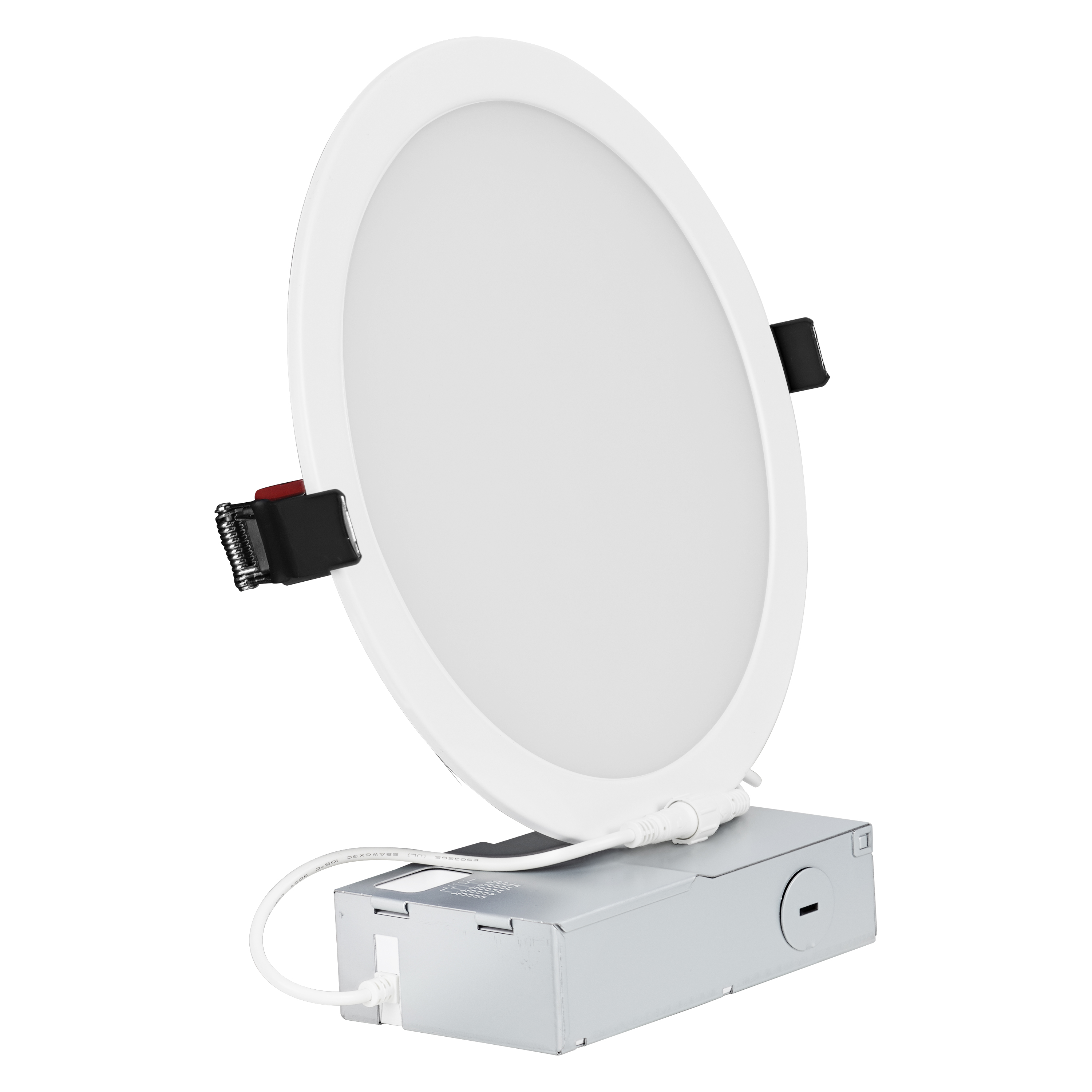

Product image: white background, diagonal
SLIM MICRODISK BLAZE GUARD 8" 1600LM
SLIM MICRODISK BLAZE GUARD 8" 1600LM

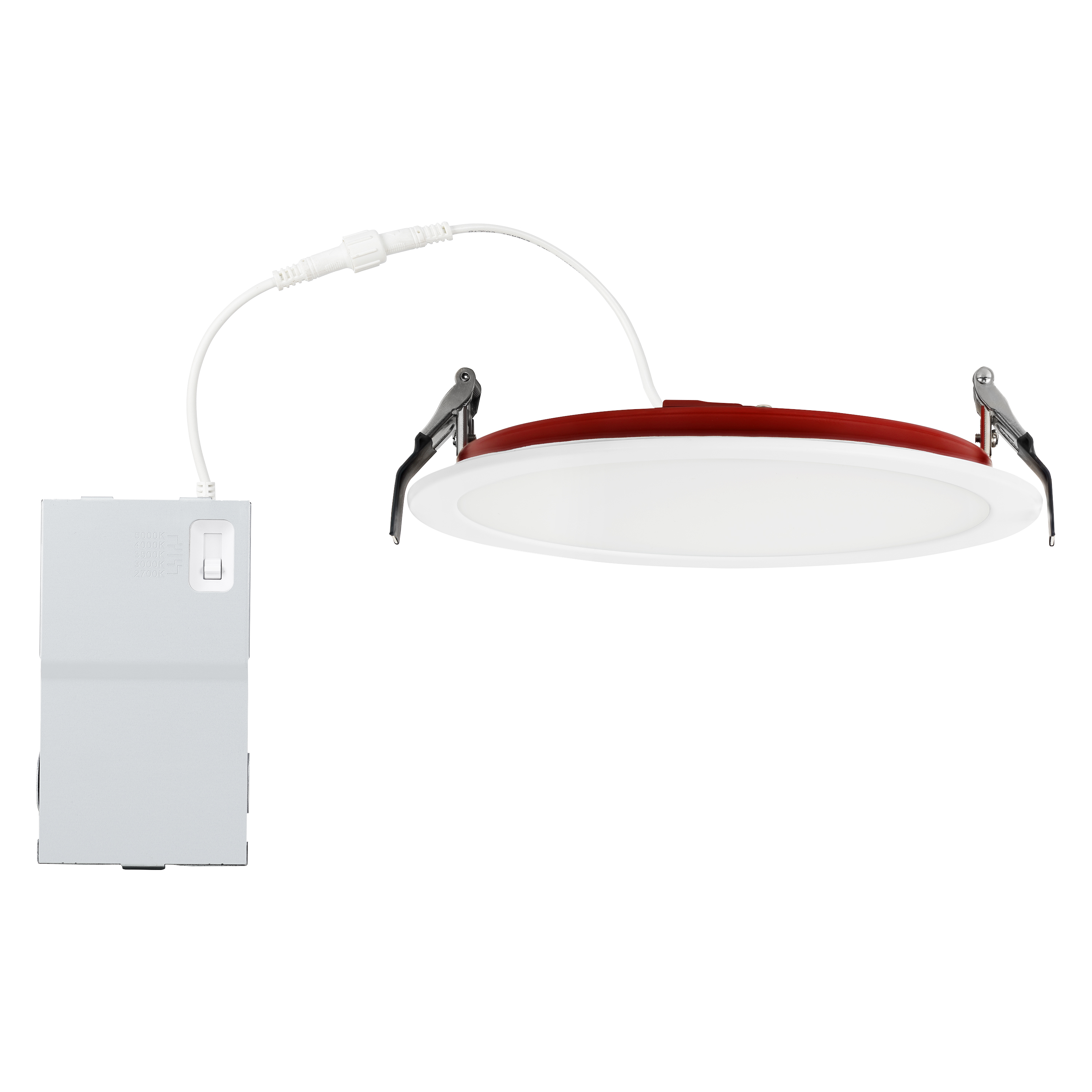

Product image: white background, horizontal
