DOWNLIGHT LIGHT DISK KIT CCT SELECTABLE
LED LIGHT DISK 5CCT 1200LM
NAED: 62447
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Residential
Product features
- Lasts up to 25x longer than incandescent lamps
- Available in 120VAC
- Up to 75 LPW
- Energy savings up to 85 %
- Flicker-free dimming, phase-cut down to 10 %
- Uniform, glare free illumination distribution
Safety advice
- Suitable for indoor dry, damp and wet locations.
Installation Guide
Performance Class Light Disk Installation Guide
Performance Class Light Disk Installation Guide
Product Family Spec Sheet
LED LIGHT DISK
LED LIGHT DISK
Other documents / promotion
June 2022 Luminaire Product of the Month LED Light Disk
June 2022 Luminaire Product of the Month LED Light Disk
Other documents / promotion
Luminaire LED Fixture and Pole Limited Warranty LEDLUM001
Luminaire LED Fixture and Pole Limited Warranty LEDLUM001
Other documents / promotion
LEDVANCE US and Canada Warranty Terms and Conditions
LEDVANCE US and Canada Warranty Terms and Conditions
Electrical data
| Nominal Wattage | 16.00 W |
| Nominal voltage | 120.00 V |
| Power factor | ≥0.90 |
| Total Harmonic Distortion | < 20 % |
Photometrical data
| Lumens | 1200 lm |
| Efficacy | 75 lm/W |
| Color Temperature/CCT | 2700/3000/3500/4000/5000 K |
| Color Rendering Index (CRI) | 90 |
| Luminaire Type | Surface |
Dimensions & Weight
| Diameter | 7.5 in |
| Height | 1.22 in |
| Product weight | 0.53 lb |
Materials & Colors
| Luminaire Finish | White |
| Housing color | White |
| Housing | Polycarbonate (PC)|Acrylonitrile butadiene styrene (ABS) |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…40 °C |
| Maximum Operating Temperature | 104 °F |
| Minimum Operating Temperature | -4 °F |
| Dimming | Yes |
| Type of Dimming | PHASE CUT |
| Mounting | Surface |
| Indoor/Outdoor | Indoor |
| Replaceable light source | No |
| Holder designation | E26 |
| Primary Lamp Type | SMD |
Lifespan
| Average Rated Life (hr) | 50000 |
Certificates & Standards
| Certification Listing | RoHS; CSA; FTC; FCC; cETLus |
Additional product data
| Ordering Abbreviation | LEDLD2A1200ST9SC3WH |
| Abbrev. With Packaging Info. | LEDLD2A1200ST9SC3WH 4/CS 1/SKU |
| SKU UPC | 0046135624476 |
| Base | E26 Medium |
| Family Brand Name | PERFORMANCE CLASS™ |
| General Description | LED Light Disk Selectable CCT, 16W, Dimmable, 90CRI, 1100- 1200Lumen,2700/3000/3500/4000/5000K, 50000 life, indoor. |
| Warranty | 5 years |
Logistical data
| SKU Qty | 1 |
| Case Qty | 4 |
| Case Length (in) | 8.268 |
| Case Width (in) | 8.268 |
| Case Depth (in) | 8.661 |
| Case Cube (ft) | 0.343 |
| Case Weight (lbs) | 3.661 |
| SKU UPC | 0046135624476 |
| Pallet Qty | 600 |
| SKU's/Case | 4 |
| SKU's/Pallet | 600 |
| Cases/Pallet | 150 |

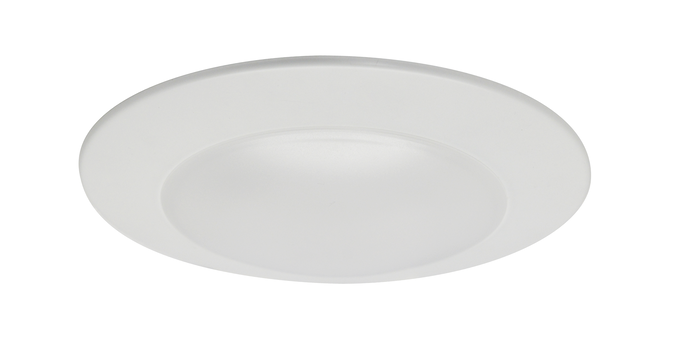

Product image: white background, horizontal
LIGHT DISK- HANGING
LIGHT DISK- HANGING
Product image: white background, upright
LIGHT DISK- FRONT
LIGHT DISK- FRONT
Product image: white background, with accessory, alternative image
LIGHT DISK ACCESSORIES
LIGHT DISK ACCESSORIES
Product image: white background, with accessory, alternative image
LIGHT DISK ACCESSORIES
LIGHT DISK ACCESSORIES

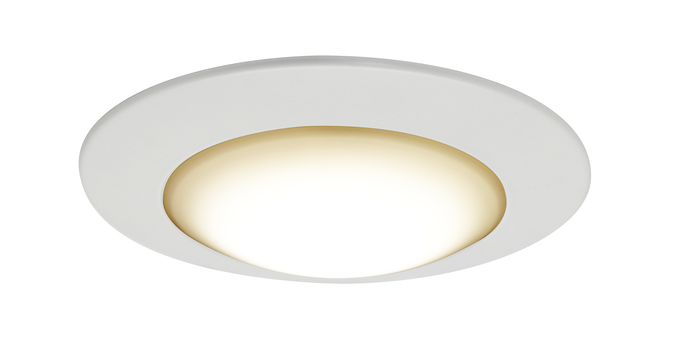

Beauty Shot
LIGHT DISK- CCT3000K
LIGHT DISK- CCT3000K
IES files (IES, additional)
Performance Class Light Disk
Performance Class Light Disk
