tapTronic™ NFC LED Driver Constant Current Linear

LED NFC PROGRAMMABLE DRIVER LINEAR 88W UNV 2400mA DIM1 AUX12

NAED: 75858
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Wall and ceiling
  • Recessed and surface-mounted ceiling luminaires
  • Suspended luminaires
Product features
  • Field-programmable via free app
  • Dim to off – dim range 1-100 %
  • Constant lumen output
  • Soft start
  • End of life
  • Thermal protection
  • DC Auxiliary output
  • cULus Class 2 and Class P
  • App is multi-lingual: English/French/Spanish/Portuguese
Safety advice
  • Suitable for dry and damp environments.
Installation Guide
Installation Guide-tapTronic Linear
PDF (1.23 MB)
Product Family Spec Sheet
tapTronic™ NFC LED Driver Constant Current
PDF (1.77 MB)
Other documents / promotion
LEDVANCE Product Launch Flyer NOV 2022
PDF (867.24 KB)
Other documents / promotion
LEDVANCE tapTronic Drivers Sales Flyer
PDF (2.29 MB)
Other documents / promotion
How to Sell LEDVANCE tapTronic NFC LED DRIVERS - INTERNAL ONLY
PPTX (5.07 MB)
Other documents / promotion
LEDVANCE tapTronic FAQ
PDF (100.49 KB)
Other documents / promotion
Tap Tronic quick start
XLSX (40.98 KB)
Electrical data
Nominal Wattage 88.00 W
Nominal voltage 120…277 V
Supply Frequency 50…60 Hz
Dimensions & Weight
Length 9.53 in
Width 1.75 in
Height 1.18 in
Product weight 1.21 lb
Application & Mounting
Dimming Yes
Number of Lamps 1
Type of Dimming 0-10V
Additional product data
Ordering Abbreviation LEDrv88UNVL2400DIM1AUX12NFC
Abbrev. With Packaging Info. LEDrv88UNVL2400DIM1AUX12NFC 20/CS 1/SKU
SKU UPC 0046135758584
General Description 88W NFC Linear Constant Current LED Driver, 240-2400 mA programmable, Dim 0-10V w/ 1-100% range, 12V AUX, NFC= Near-Field Communication. Field-Programmable
Capabilities
Dimming Yes
Certificates & Standards
Certification Listing FCC; RoHS
Protection class I
Type of protection IP20
Logistical data
SKU Qty 1
Case Qty 20
Case Length (in) 12.992
Case Width (in) 10.236
Case Depth (in) 7.874
Case Cube (ft) 0.606
Case Weight (lbs) 24.802
SKU UPC 0046135758584
Pallet Qty 1,440
SKU's/Case 20
SKU's/Pallet 1440
Cases/Pallet 72

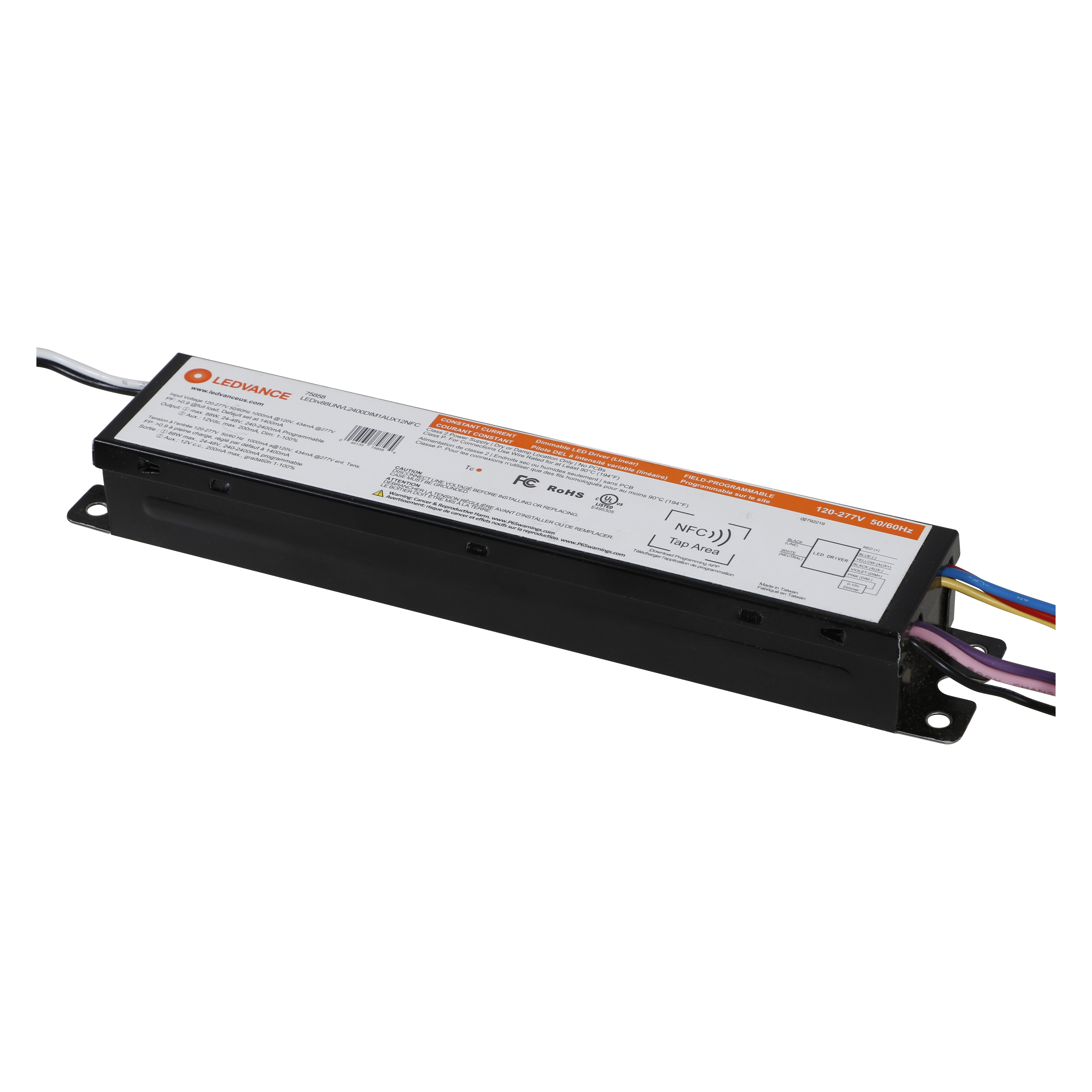

Product image: white background, diagonal
tapTronic 88W LED Driver
JPG (1.32 MB)

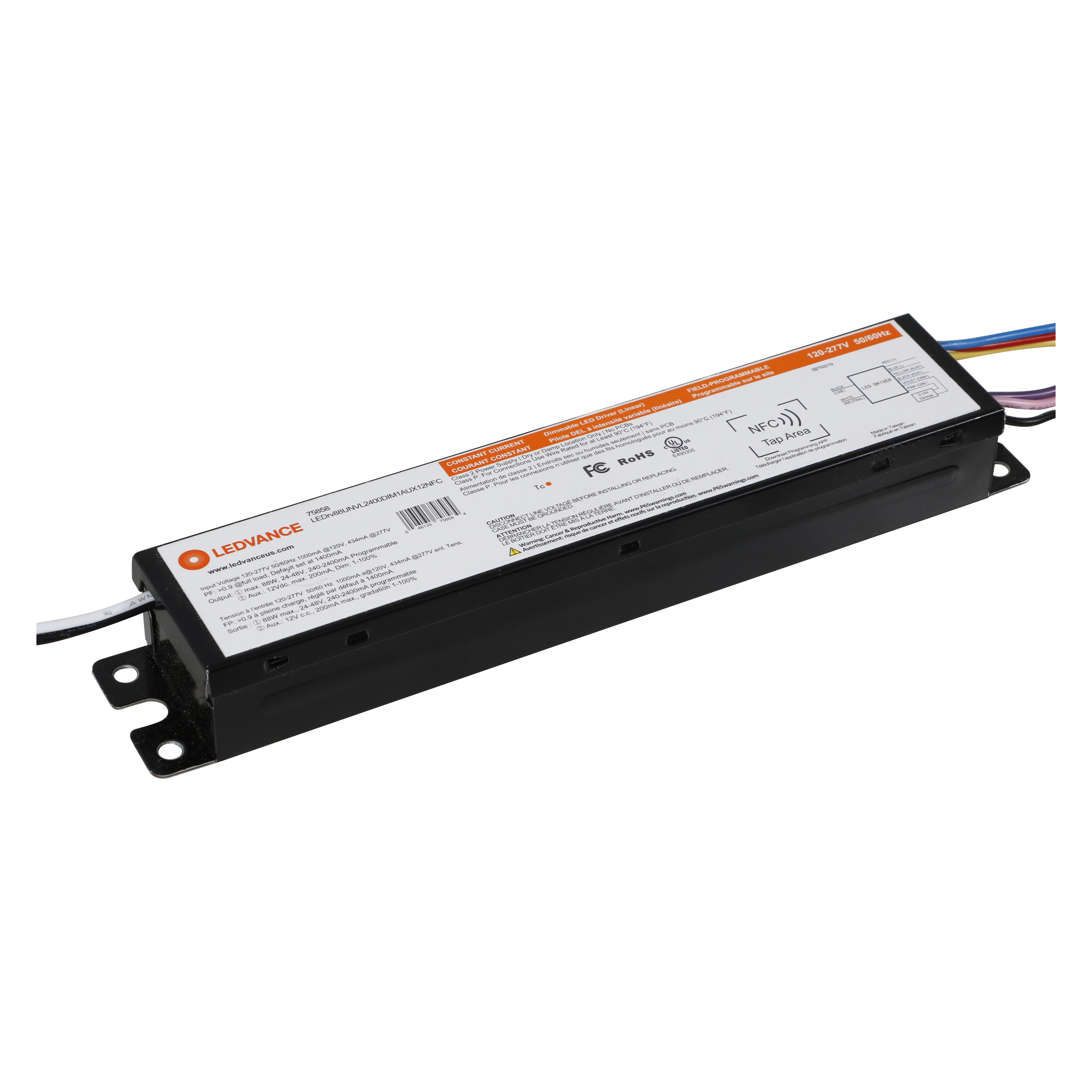

Product image: white background, diagonal
tapTronic 88W LED Driver
JPG (1.39 MB)

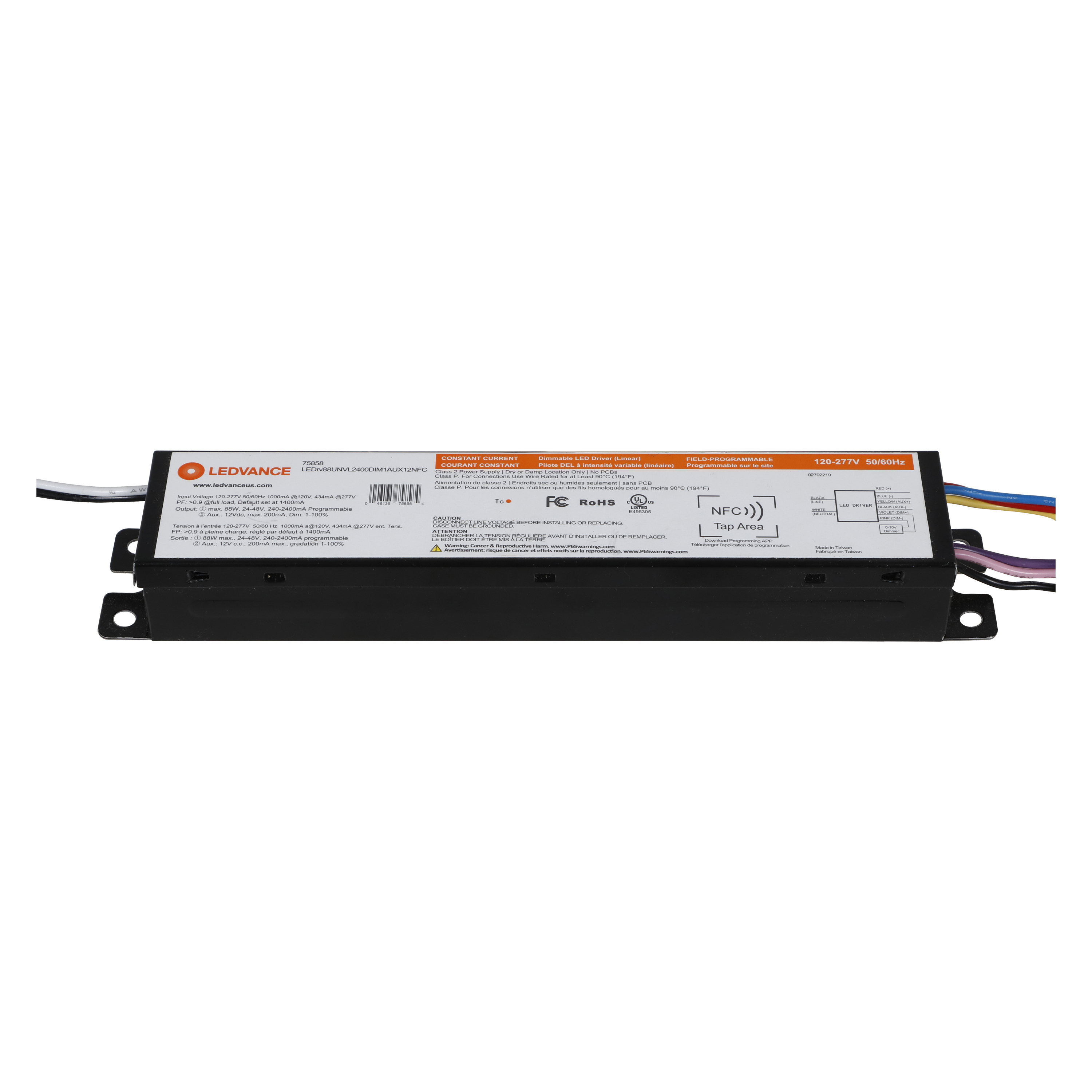

Product image: white background, horizontal
tapTronic 88W LED Driver
JPG (1.26 MB)
Product image: white background, horizontal
tapTronic 88W LED Driver
JPG (1.24 MB)

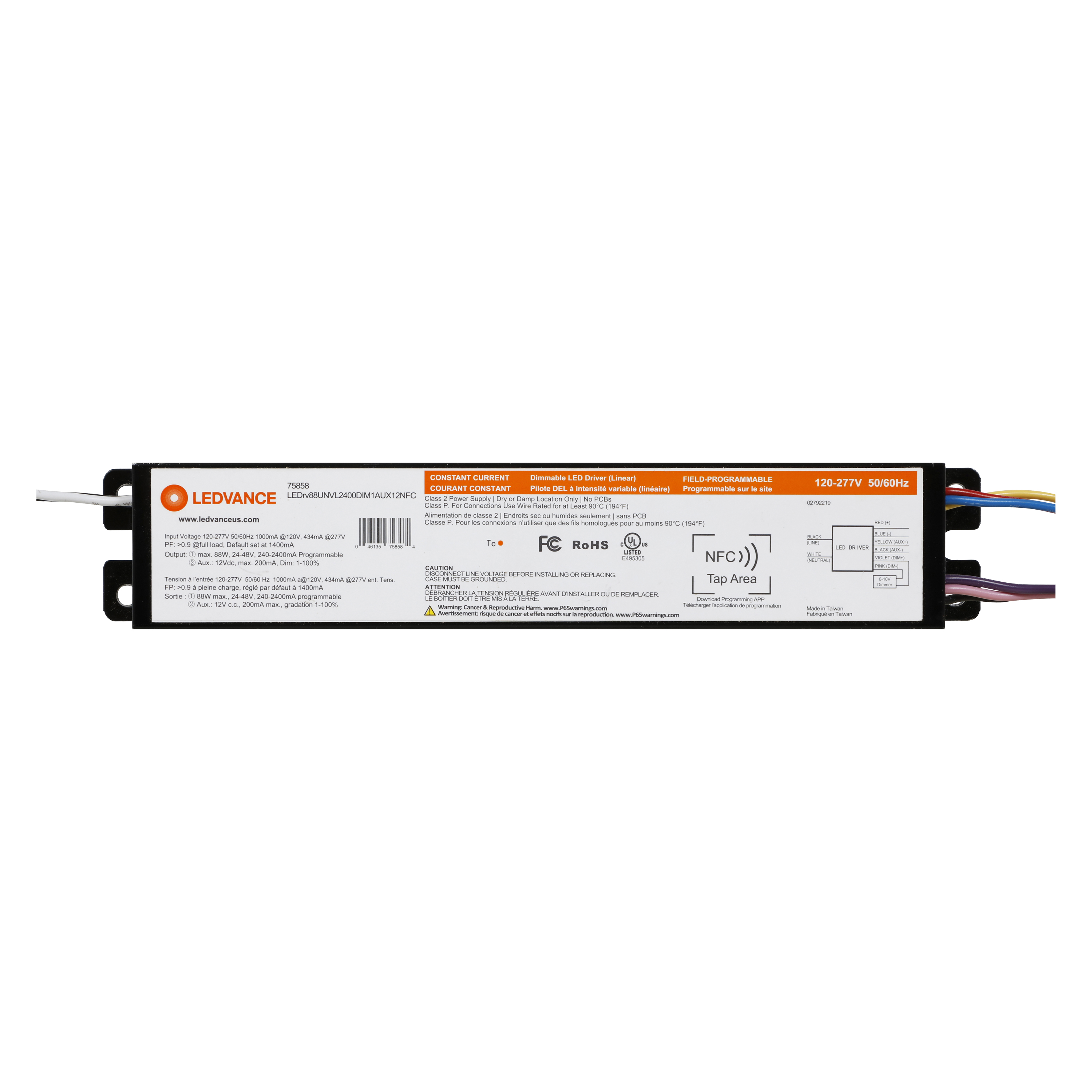

Product image: white background, horizontal
