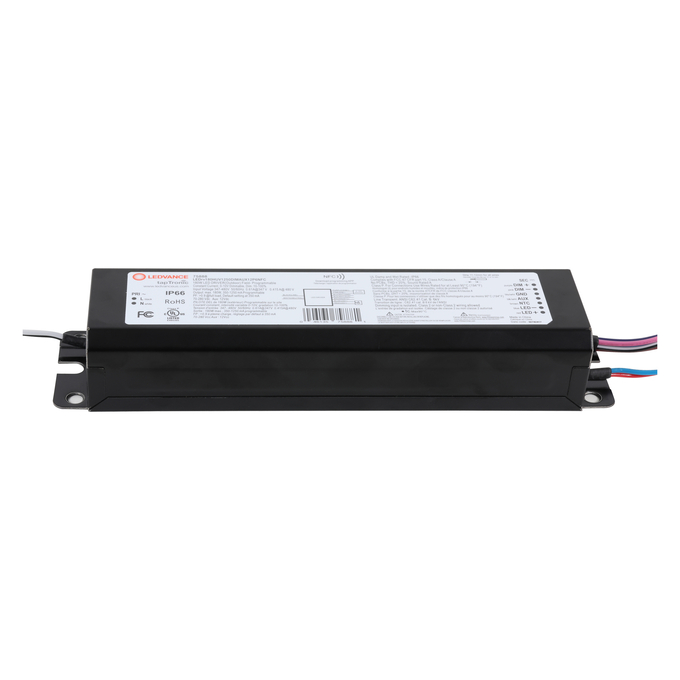

LED NFC PROGRAMMABLE DRIVER OUTDOOR 180W HUV 1250mA DIM AUX12 IP65 white, horizontal
LED NFC PROGRAMMABLE DRIVER OUTDOOR 180W HUV 1250mA DIM AUX12 IP65 white, horizontal
tapTronic™ NFC LED Driver Constant Current Outdoor

LED NFC PROGRAMMABLE DRIVER OUTDOOR 180W HUV 1250mA DIM AUX12 IP65

NAED: 75888
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Area lights
  • Industrial high bays
  • Wall packs
  • Décor landscape
  • Cobraheads
  • Bollards
  • Hazardous locations
Product features
  • Field-programmable via free app
  • Dim to off – dim range 10-100 %
  • Constant lumen output
  • Soft start
  • End of life
  • Thermal protection
  • DC Auxiliary output
  • cULus Class P
  • IP65
  • App is multi-lingual: English/French/Spanish/Portuguese
Installation Guide
installation guide tapTronic™ NFC LED Driver Constant Current
PDF (1.7 MB)
Product Family Spec Sheet
tapTronic™ NFC LED Driver Constant Current
PDF (1.77 MB)
Other documents / promotion
LEDVANCE Product Launch Flyer May 2025
PDF (885.69 KB)
Other documents / promotion
LEDVANCE US and Canada Warranty Terms and Conditions
PDF (147.57 KB)
Electrical data
Nominal Wattage 180.00 W
Nominal voltage 347…480 V
Supply Frequency 50…60 Hz
Dimensions & Weight
Length 9.47 in
Width 2.36 in
Height 1.5 in
Product weight 2.2 lb
Application & Mounting
Dimming Yes
Number of Lamps 1
Type of Dimming 0-10V
Additional product data
Ordering Abbreviation LEDrv180HUV1250DIMAUX12P6NFC
Abbrev. With Packaging Info. LEDrv180HUV1250DIMAUX12P6NFC 10/CS 1/SKU
SKU UPC 0046135758881
General Description 180W NFC Outdoor Constant Current LED Driver, 350-1250mA programmable, Dim 0-10V w/ 10-100% range, 12V AUX port, IP66 NFC+ Near Field Communication
Capabilities
Dimming Yes
Certificates & Standards
Certification Listing RoHS; FCC; cULus
Type of protection IP66
Logistical data
SKU Qty 1
Case Qty 10
Case Length (in) 18.228
Case Width (in) 11.221
Case Depth (in) 5.669
Case Cube (ft) 0.671
Case Weight (lbs) 23.058
SKU UPC 0046135758881
Pallet Qty 640
SKU's/Case 10
SKU's/Pallet 640
Cases/Pallet 64
